Description

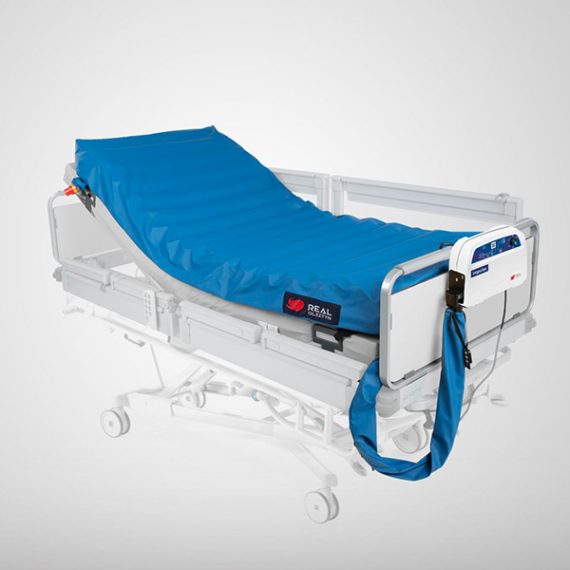

The IMPULSE pressure redistribution overlay system is used as an aid in the prevention and treatment of pressure ulcers up to category 3 (EPUAP/NPUAP). The system is suitable for a wide range of care settings in hospital, community and home care.
TWO OPERATION MODES
ALTERNATING – periodically redistributes pressure away by inflating and deflating every 2nd cell beneath the patient’s body in chosen time period (10, 15 or 20 minutes). Static head section ensures additional comfort.
STATIC – cell pressure is held constant across the surface and body mass is redistributed over a greater surface. It defaults automatically to alternating mode after 30 minutes.
PATIENT WEIGHT LIMIT
STATIC HEAD SECTION
Cells in head section are always inflated for better comfort.
iMAL – INDEPENDENT MICRO AIR LOSS
With the innovative iMAL system the microclimate management is easy and effective.
In conventional micro air loss systems the air is coming through the micro holes made in cells, but patient’s body blocks the holes and reduces the effectiveness. The iMAL system is located beneath the mattress cells and is not interfered with patient’s body.
The regular airflow helps to reduce the heat and moisture and release them to the air. It helps to achieve proper micro climate management and increase patient’s comfort.
ALARMS
POWER FAIL ALARM – Audible and visual indicator of power loss
LOW PRESSURE ALARM – audible and visual indicator of low pressure in the mattress . An audible alarm will sound unless cancelled by the mute button.
SERVICE INDICATOR – indicates the internal fault of pump.
AUTO-LOCKOUT
Enhances patient safety by preventing accidental or unintentional setting changes. After a period of inactivity the control panel will automatically lockout.
CPR
The CPR strap for quick release. Single-handed facility located on the mattress side. It enable rapid air deflation for emergencies, handling or storage etc.
TRANSPORT MODE
Transport facility provides patient support for up to 24 hours on a mattress.
TOP COVER
2-way stretch top cover minimising friction and share forces. Vapour permeable and water resistant for patient comfort and hygiene. Attached to the mattress base by concealed zips to reduce ingress of fluids. Flame retardant, easy to clean. It can be completely removed for laundering.
TECHNICAL SPECIFICATION
Order code: IM100-13031
-
MATTRESS REPLACEMENT Dimensions 200 x 85 x 13cm(±1cm) Number of cells 16 Cell material PVC-nylon Cover material poliester-PU Mattress base material poliester-PU Max patient weight 200kg
-

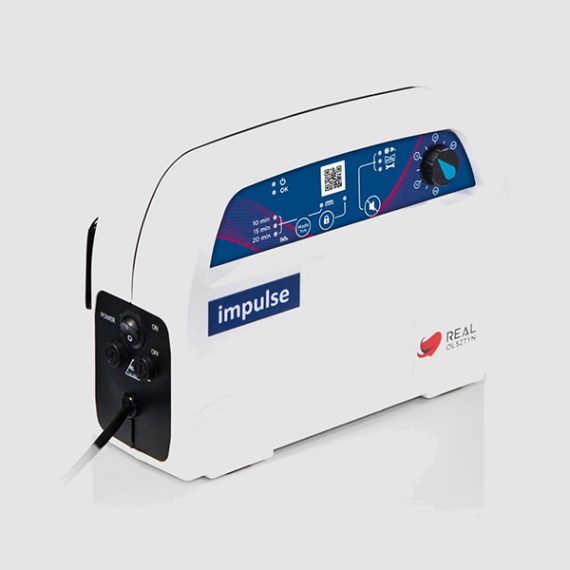

PUMP Dimensions 31 x 20 x 10cm Case material ABS Mode of operation continous Supply voltage/frequency 230V/50Hz Power output 8 W Operating cycle times 10, 15, 20 minutes Degree of protection against Electrical shock Class II, type BF Degree of protection against ingress of liquids IP21
